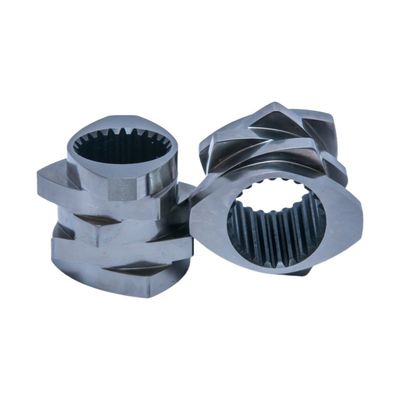

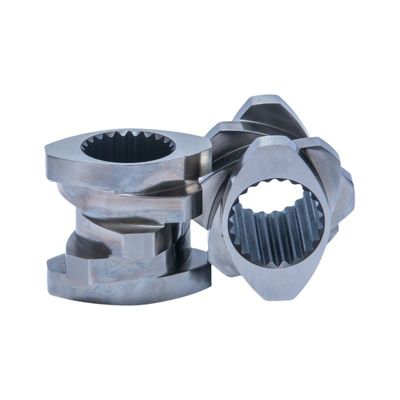

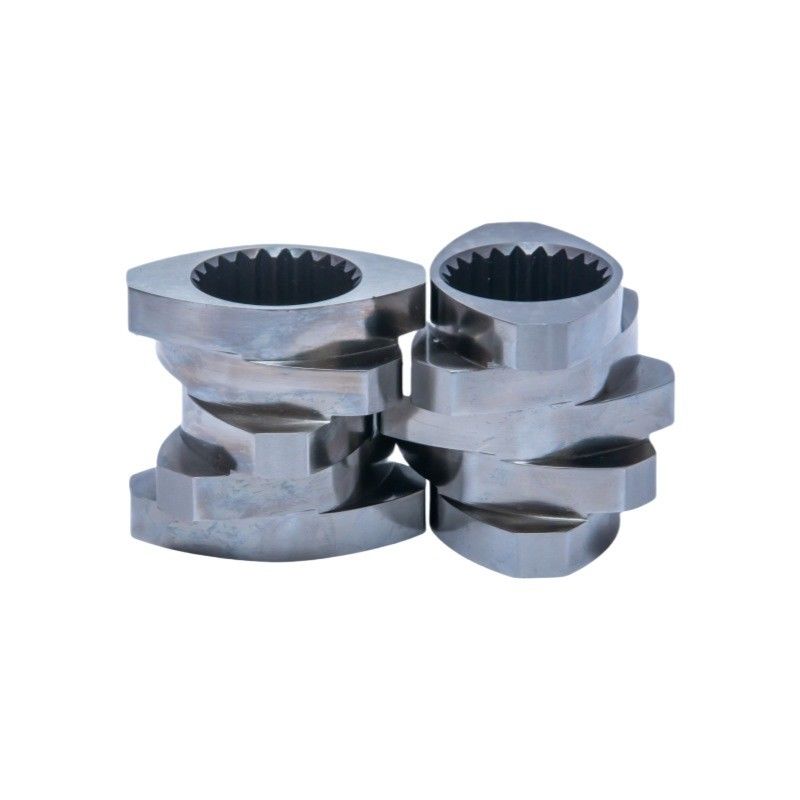

Melting Zone Extruder kneading block 30° 45° 60° Angle Design Stable Performance

Product Description

The screw elements of twin-screw extruders are widely used in various industries such as food production, plastics manufacturing, chemical processing, pharmaceuticals, and animal feed production. These elements, including the kneading block 30°, kneading block 45°, and kneading block 60°, play a crucial role in mixing, conveying, extruding, and ensuring the uniformity and quality of the final product in each application.

We can satisfy your different material needs:

According to appearance design.

Specification

Screw Diameter	207mm
Screw Design	Double-Screw
Hardness	58-60HRC
Brand Name	Nanxiang
Surface Treatment	Polishing/Sand Blasting
Materials	SAM10/SAM39/WR5/WR14/W6Mo5Cr4V2
Place of Origin	Sichuan , China
Warranty	1 Years
Screw Range	Φ 15.6 - Φ 430mm
Suit For	Pharmaceuticals Extrusion Chemical Extrusion Food Extrusion Powder Coating Extrusion

Extruder Screw Materials

1. For wear application:

Tool Steel : W6Mo5Cr4V2;

PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V

2. For corrosion application:

Nitrided Steel: 38CrMoAI;

PM-HIP material : SAM26 SAM39 CPM10V CPM9V

3. For wear and corrosion application:

PM-HIP material:SAM26 SAM39 CPM10V CPM9V

4. Other Materials:

Stainless Steel: 316L, C276 etc.

Screw elements include

Single flight, twin flight and tri-lobe elements

Kneading blocks and single

mixing paddles or discs

High volume intake elements

Conveying elements

Compression elements

Reverse elements

Flow splitting elements to mix different viscosities

Transition elements from single flight to twin flight

Support twin-screw extruder brand

Quality Control

1). Materials control: All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers, which tested by elemental analysis and metallurgical inspections to ensure the quality.

2). The internal splines is checked by the spline plug to ensure interchangeability of the elements

3). All components are machined by CNC machines to ensure the shapes and tolerances of the elements

4). Adopt the European high-speed steel powder processing technology, and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.

5). Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.

6). There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.

7). The modern management system can ensure the products 100% qualified and tracked

Tool Steel

Certificate

ISO Certificate and Patent

Packing&Delivery

Packing Details: According to your order quantity packaging, shipping wooden boxes, air carton.

Delivery Details: 20-60days after order.

Customer trust

FAQ

Q: Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu, Sichuan Province, China. You can fly directly to Chengdu Airport, and we will pick you up upon arrival. We warmly welcome all our clients, both domestic and international, to visit us.

Q: How long will your product last?

A: The lifespan of our products can vary greatly depending on the operation time, materials used, and working conditions. Therefore, it is difficult to provide an exact duration.

Q: Are your quotations all FOB?

A: Yes, all our quotations are FOB (Free on Board).
