Product Description

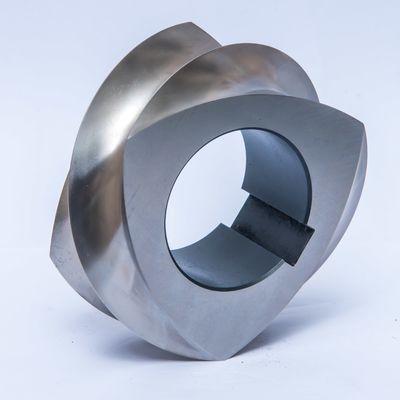

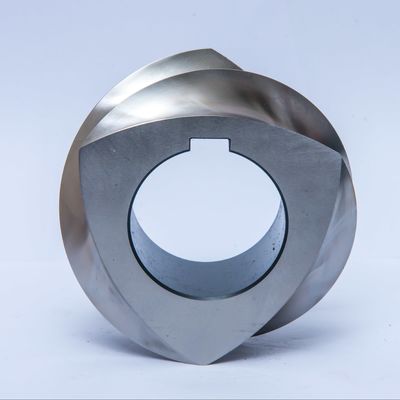

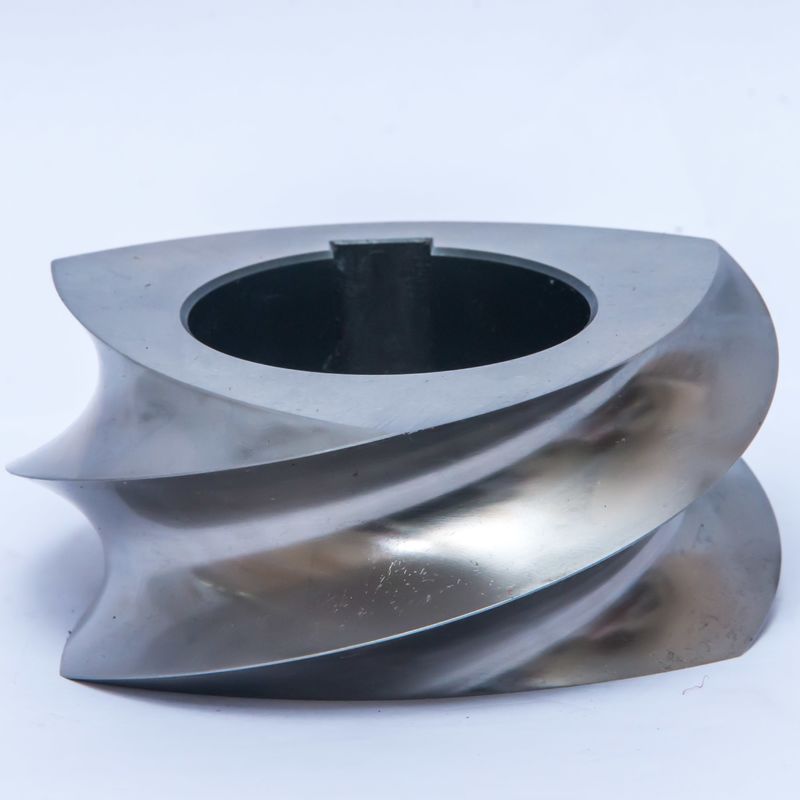

Our Triple Flighted Screw Element is engineered to the highest standards, incorporating a triple spiral design that ensures optimum performance and durability. This three-start screw element is designed to deliver a superior level of precision and control, making it the perfect choice for demanding industrial applications.

Our Triple Flighted Screw Element is vacuum hardened to ensure maximum strength and durability. This heat treatment process delivers superior wear resistance and extends the lifespan of the screw element, ensuring long-lasting performance and reliability. With a head size of 1 inch, this screw element is easy to install and is compatible with a wide range of industrial machinery.

Features

 1. Product Name: Triple Flighted Screw Element

 2. Heat treatment: Vacuum Hardening

 3. Thread Direction: Right Hand

 4. Size: 3 Inches

 5. Head Size: 1 Inch

 6. Durability: Long-lasting

 7. Keywords: Triple Helix Screw Element, Tri-Flight Extruder Screw, Triple Thread Screw Element

Technical Parameters

Screw Diameter	Optional
Screw Design	Triple Flighted Screw Element
Hardness	58-60HRC
Brand Name	Nanxiang Machinery
Surface Treatment	Polishing/Sand Blasting
Materials	SAM10/SAM39/WR5/WR14/W6Mo5Cr4V2
Place of Origin	Sichuan , China
Warranty	6 months
Screw Range	Φ 15.6 - Φ 430mm
Suit For	Pharmaceuticals Extrusion Chemical Extrusion Food Extrusion Powder Coating Extrusion

Applications

Our Screw Elements are perfect for a variety of applications and scenarios. They are ideal for use in extruders, injection molding machines, and other industrial machinery. The Double Flighted design of our Screw Elements allows for better mixing and homogenization of materials, making them ideal for use in the plastics, food, and chemical industries. Plus, our Screw Elements are designed to be easy to install and maintain, making them a great choice for those who need reliable machinery that is easy to upkeep.

At Nanxiang Machinery, we take pride in our high-quality products and excellent customer service. Our Screw Elements are certified to meet ISO 9001 standards and are made in Sichuan China, ensuring that you get a product that is reliable and trustworthy. We offer flexible Minimum Order Quantities and competitive pricing, so you can get the Screw Elements you need at a price that fits your budget. Plus, our Screw Elements come with Wooden Packaging and can be delivered in 30 to 60 days, depending on your needs.

Whether you are looking for a Screw Element with Double Coils for your existing machinery or need a customized solution, Nanxiang Machinery has the product you need. Contact us today to learn more about our Screw Elements and how they can help take your business to the next level!

Extruder Screw Materials

1. For wear application:

Tool Steel : W6Mo5Cr4V2;

PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V

2. For corrosion application:

Nitrided Steel: 38CrMoAI;

PM-HIP material : SAM26 SAM39 CPM10V CPM9V

3. For wear and corrosion application:

PM-HIP material:SAM26 SAM39 CPM10V CPM9V

4. Other Materials:

Stainless Steel: 316L, C276, SX737 etc.

Customization

Product Customization Services for Double Flighted Screw Element

The Double Flighted Screw Element is a product manufactured by Nanxiang Machinery. It is available in various models, with the Model Number being customizable as per the customer's requirements. The product is made in Sichuan, China, and is certified with ISO 9001.

The minimum order quantity for this product is negotiable, and the price is also negotiable. The packaging details include a wooden package, and the delivery time is approximately 30-60 days. The payment terms for this product are TT/LC, and the supply ability is 300M/Month.

The connection method for this product is Spline, and it has a torque capacity of up to 5000 Nm. The screw diameter ranges from 10mm-300mm and can be customized as per the customer's requirements. The product has 2 flights, making it a Double Start Screw Element or a Screw Element with Double Coils or Double Flighting.

This product is highly wear-resistant and is suitable for a variety of applications.

Support twin-screw extruder brand

Support and Services

The Double Flighted Screw Element is a product used in various industries for conveying and processing materials. Our technical support team is available to assist with any questions or issues related to the product, including installation, maintenance, and troubleshooting. Additionally, we offer a range of services for the Double Flighted Screw Element, including repair and replacement of parts, customization options, and performance testing. Our team is dedicated to ensuring that our customers receive the highest level of support and service for this product.

Tool Steel

Production Process

	NO.1   Workblank     Select high-quality raw materials
NO.2   Piecewise According to the drawing section length
	NO.3   Hit bottom hole Rough machining the bottom hole,and then pull spline
NO.4   Machining thread Professional high-end processing equipment,rough machining threads
	NO.5   Finish machining thread
NO.6   Threading grinding Further control of tolerance Length:-0.01mm-+0.01mm OD:-0.03mm-0mm Transition arc:-0.02mm-+0.02mm

Packing and Shipping

The Double Flighted Screw Element will be packed in a sturdy cardboard box to ensure safe transportation.

The box will be sealed with strong adhesive tape to prevent any damage or tampering during shipping.

Shipping:

The product will be shipped via a reliable courier service.

The shipping time will depend on the destination, but we will provide you with an estimated delivery date when we confirm your order.

We will also provide you with a tracking number so you can track your shipment.

Certificate

Why choose us?

Nanxiang Machinery is a specialized manufacturer of precision-machined components for twin-screw extruders, including threaded elements, kneading blocks, mandrels, super-hard screw accessories, and wear-resistant alloy steel sleeves. Our products are widely applied in renowned international brands such as Coperion, Lerstritz, Berstorff, KOBE, and JSW, serving industries like plastics, food, feed, pellet manufacturing, pharmaceuticals, and new energy.

FAQ

Q: What is the brand name of the Double Flighted Screw Element product?

A: The brand name of the Double Flighted Screw Element product is Nanxiang Machinery.

Q: What is the minimum order quantity of the Double Flighted Screw Element product?

A: The minimum order quantity of the Double Flighted Screw Element product is negotiable.

Q: What is the packaging detail of the Double Flighted Screw Element product?

A: The packaging detail of the Double Flighted Screw Element product is wooden package.

Q: What is the delivery time of the Double Flighted Screw Element product?

A: The delivery time of the Double Flighted Screw Element product is 30~60 days.

Q: What is the payment term of the Double Flighted Screw Element product?

A: The payment term of the Double Flighted Screw Element product is TT/LC.
