Corrosion Resistant Stainless Steel Toothed Mixing Elements for Industrial Applications

Product Description

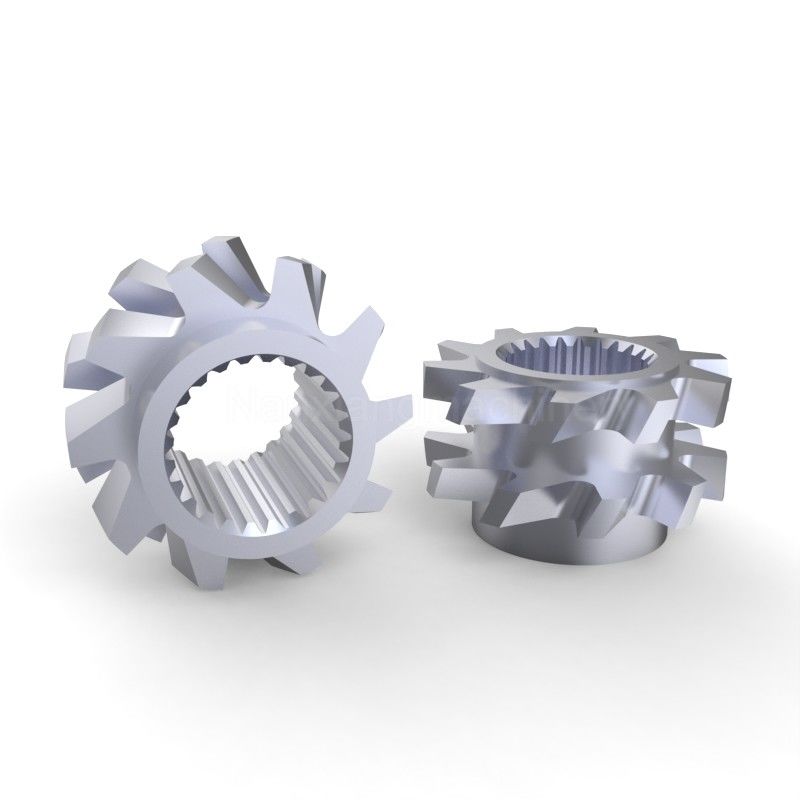

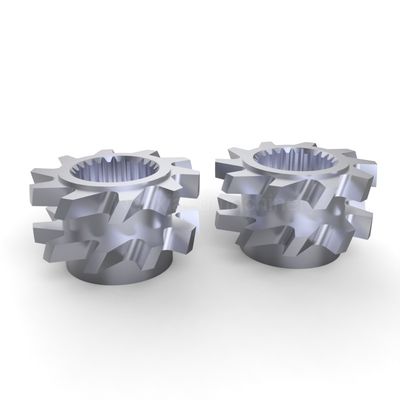

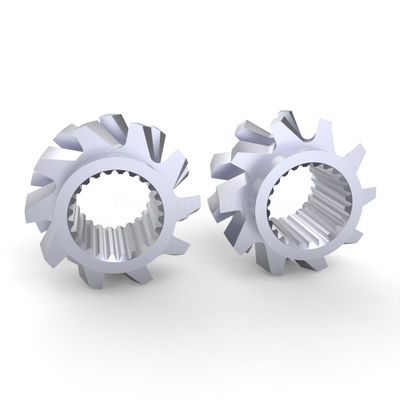

One of the key features of the Twin Screw Toothed Mixing Elements is their shape. These mixing elements are designed with toothed edges that help to break down materials and ensure a uniform dispersion. This shape is particularly useful for products that require a high level of precision and accuracy in the mixing process.

Another important attribute of the Twin Screw Toothed Mixing Elements is their durability. These mixing elements are designed to withstand heavy use and wear, making them an ideal choice for industrial applications where equipment needs to perform under challenging conditions. They are also resistant to wear and tear and can last for a long time with little to no maintenance required.

The size of the Twin Screw Toothed Mixing Elements is also customizable, which means that they can be tailored to meet specific production needs. This is particularly useful for manufacturers who have unique requirements for their mixing equipment.

Twin Screw Toothed Mixing Elements are highly versatile and can be used in a variety of industrial applications. They are commonly used in the production of plastics, rubber, food products, and chemicals. These mixing elements are also typically used in extrusion, compounding, and injection molding processes.

In summary, Twin Screw Toothed Mixing Elements are a reliable and effective choice for industrial mixing applications. Their toothed shape, accuracy, durability, and customizable size options make them an ideal choice for manufacturers who need precision and efficiency in their mixing processes. Whether you are producing plastics, rubber, food products, or chemicals, Toothed Mixing Elements for Dispersion are a reliable and effective choice for your industrial mixing needs.

Technical Parameters

Product Name	Toothed Mixing Elements
Screw Design	Backward Pumping Kneading Block
Hardness	58-60HRC
Brand Name	Nanxiang Machinery
Surface Treatment	Polishing/Sand Blasting
MOQ	Negotiable
Place of Origin	Sichuan , China
Warranty	6 months
Size	Customized
Suit For	Pharmaceuticals Extrusion Chemical Extrusion Food Extrusion Powder Coating Extrusion

Applications

Our toothed mixing elements are a perfect fit for a variety of industrial mixing applications, including but not limited to:

• Plastic compounding
• Polymer production
• Food processing
• Chemical production

Quality Control

1). Materials control: All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.

2). The internal splines is checked by the spline plug to ensure interchangeability of the elements

3). All components are machined by CNC machines to ensure the shapes and tolerances of the elements

4). Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.

5). Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.

6). There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.

7). The modern management system can ensure the products 100% qualified and tracked.

Tool Steel

Production Process

	NO.1   Workblank     Select high-quality raw materials
NO.2   Piecewise According to the drawing section length
	NO.3   Hit bottom hole Rough machining the bottom hole,and then pull spline
NO.4   Machining thread Professional high-end processing equipment,rough machining threads
	NO.5   Finish machining thread
NO.6   Threading grinding Further control of tolerance Length:-0.01mm-+0.01mm OD:-0.03mm-0mm Transition arc:-0.02mm-+0.02mm

Our Service

Product accuracy

There are some differences between Nanxiang Machinery and Nanjing's production technology. Their finishing process is carried out before heat treatment, and the deformation after heat treatment is not controlled, so their accuracy is not easy to control. But our finishing process is carried out after heat treatment, which can eliminate the deformation of parts in heat treatment, so the precision is higher, and thus can achieve zero seam connection.

Packing&Delivery

Packing Details: According to your order quantity packaging, shipping wooden boxes, air carton.

Delivery Details: 20-60days after order.

Packing

According to your order quantities and products sizes to choose wooden boxes or cartons to pack:

a. Rust-proof oil processing,

b. Oiled paper packages,

c. Bubble wrap package,

d. Special foam packaging,

e. Packing,

f. Sealing.

Customer Trust

Certificate

Why choose us?

Nanxiang Machinery is a specialized manufacturer of precision-machined components for twin-screw extruders, including threaded elements, kneading blocks, mandrels, super-hard screw accessories, and wear-resistant alloy steel sleeves. Our products are widely applied in renowned international brands such as Coperion, Lerstritz, Berstorff, KOBE, and JSW, serving industries like plastics, food, feed, pellet manufacturing, pharmaceuticals, and new energy.

FAQ

Q: Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu, Sichuan Province, China. You can fly directly to Chengdu Airport, and we will pick you up upon arrival. We warmly welcome all our clients, both domestic and international, to visit us.

Q: How long will your product last?

A: The lifespan of our products can vary greatly depending on the operation time, materials used, and working conditions. Therefore, it is difficult to provide an exact duration.

Q: Are your quotations all FOB?

A: Yes, all our quotations are FOB (Free on Board).

Q: Can I get a one-year warranty for free?

A: Our standard warranty is not free, but we have confidence in the quality of our products. If you require a warranty, it will be available for an additional cost.

Q: How is your after-sale service?

A: We are committed to providing timely support. If you encounter any issues with our products, you will receive our assistance promptly. We strive to ensure you receive the best service possible.

Q: What is the packaging and delivery time for the toothed mixing elements product?
A: The product is packaged in wooden packages and the delivery time is between 30 to 60 days, depending on the quantity ordered.

Q: What is a twin screw extruder's purpose?

A: Extrudes are used to extrude viscous substances into high-quality structured products by accurately controlling processing conditions. Once extruded, these materials become plastics compounds, chemically modified polymers, textured food and feed products, cellulose pulps, and other products.
