Product Description

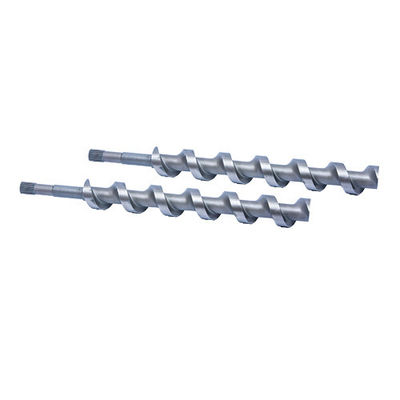

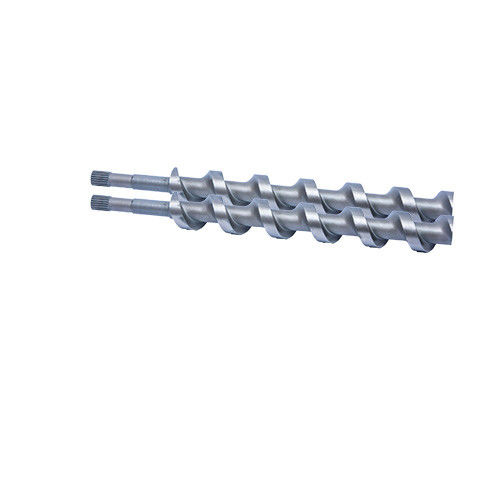

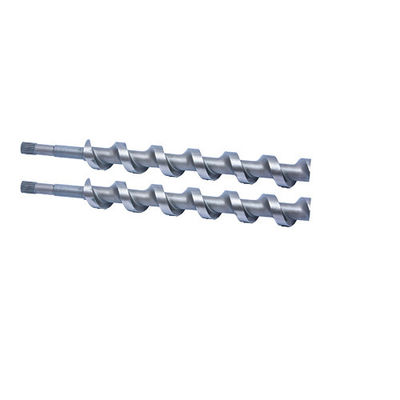

The Side Feeder Shearing Elements are designed to cut and shear materials during the extrusion process. These elements ensure that materials are cut uniformly, ensuring consistent product quality.

The Side Feeder Pelletizing Elements are designed to transform extruded materials into pellets. These elements ensure that the pellets are of high quality and meet the required industry standards.

Technical Parameters

Product Name	Side Feeder Elements
Screw Design	Single flighted
Hardness	58-60HRC
Brand Name	Nanxiang Machinery
Surface Treatment	Polishing/Sand Blasting
Supplier	Factory Direct
Place of Origin	Sichuan , China
Warranty	6 months
Application	Extrusion Machine
Suit For	Pharmaceuticals Extrusion Chemical Extrusion Food Extrusion Powder Coating Extrusion

Applications

The Side Feeder Shearing Elements are designed to cut and mix plastic material during the extrusion process. They are widely used in the production of films, sheets, and profiles. The Side Feeder Mixing Elements are designed to mix and homogenize different materials during extrusion. They are ideal for the production of masterbatch and color concentrates. The Side Feeder Compounding Elements are designed to mix and compound different materials with high accuracy and consistency. They are widely used in the production of engineering plastics and high-performance materials.

The Side Feeder Elements are suitable for a wide range of plastic extrusion processes, including but not limited to:

• Film extrusion
• Sheet extrusion
• Profile extrusion
• Blown film extrusion
• Pipe extrusion
• Wire and cable extrusion

These elements are highly efficient and can improve the overall quality and output of the extrusion process. They are suitable for use with a variety of plastic materials, including PVC, PE, PP, PS, ABS, and more. With their high accuracy and consistency, the Side Feeder Elements can help reduce material waste and improve production efficiency. They are a must-have for any plastic extrusion process

Support twin-screw extruder brand

Reasons for Utilization

1. Substantial reduction of wear costs in the melting section of the main screw and barrels
2. Gentler and more delicate processing of fillers
3. Considerable increase in throughput
4. Significant increase in quality through adequate and sufficient fixing
5. Substantial lowering of the cost

Production Process

	NO.1   Workblank     Select high-quality raw materials
NO.2   Piecewise According to the drawing section length
	NO.3   Hit bottom hole Rough machining the bottom hole,and then pull spline
NO.4   Machining thread Professional high-end processing equipment,rough machining threads
	NO.5   Finish machining thread
NO.6   Threading grinding Further control of tolerance Length:-0.01mm-+0.01mm OD:-0.03mm-0mm Transition arc:-0.02mm-+0.02mm

Our Service

Product accuracy

There are some differences between Nanxiang Machinery and Nanjing's production technology. Their finishing process is carried out before heat treatment, and the deformation after heat treatment is not controlled, so their accuracy is not easy to control. But our finishing process is carried out after heat treatment, which can eliminate the deformation of parts in heat treatment, so the precision is higher, and thus can achieve zero seam connection.

Packing&Delivery

Packing Details: According to your order quantity packaging, shipping wooden boxes, air carton.

Delivery Details: 20-60days after order.

Packing

According to your order quantities and products sizes to choose wooden boxes or cartons to pack:

a. Rust-proof oil processing,

b. Oiled paper packages,

c. Bubble wrap package,

d. Special foam packaging,

e. Packing,

f. Sealing.

Customer Trust

Certificate

Why choose us?

Nanxiang Machinery is a specialized manufacturer of precision-machined components for twin-screw extruders, including threaded elements, kneading blocks, mandrels, super-hard screw accessories, and wear-resistant alloy steel sleeves. Our products are widely applied in renowned international brands such as Coperion, Lerstritz, Berstorff, KOBE, and JSW, serving industries like plastics, food, feed, pellet manufacturing, pharmaceuticals, and new energy.

FAQ

Q: Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu, Sichuan Province, China. You can fly directly to Chengdu Airport, and we will pick you up upon arrival. We warmly welcome all our clients, both domestic and international, to visit us.

Q: How long will your product last?

A: The lifespan of our products can vary greatly depending on the operation time, materials used, and working conditions. Therefore, it is difficult to provide an exact duration.

Q: Are your quotations all FOB?

A: Yes, all our quotations are FOB (Free on Board).

Q: Can I get a one-year warranty for free?

A: Our standard warranty is not free, but we have confidence in the quality of our products. If you require a warranty, it will be available for an additional cost.

Q: How is your after-sale service?

A: We are committed to providing timely support. If you encounter any issues with our products, you will receive our assistance promptly. We strive to ensure you receive the best service possible.
