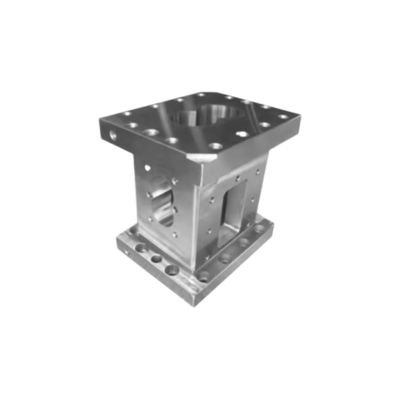

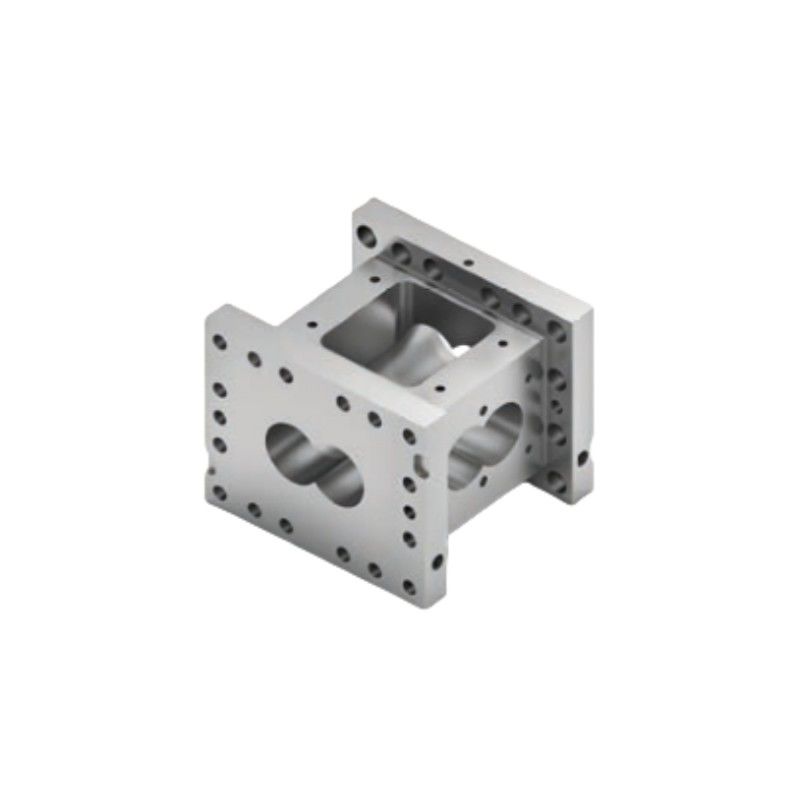

HRC 58-62 Wear Resistance Alloy Steel Machined 50mm Cylinder Feed Extruder Side Feed Barrels

Product Description

Our top vent side feed barrels are designed to be used with a wide range of extruder systems, making them a versatile choice for any operation. And with their side feed design, they offer exceptional performance and reliability, even in the most challenging environments.

Technical Parameters

Product Name	Side-Feed Extruder Barrel
Production	Forging + CNC
Technics	Machining
Material	Alloy Steel
Barrel Type	Side Feed
Screw type	Double Screw
Standard	DIN, GB, Etc.
Application	Plastic industry/ Wood plastic inflated/ Food powder coating

Applications

These Extruder Side Feed Barrels are suitable for use in various plastic extrusion processes and can be used in a range of industrial settings, making them a versatile and valuable addition to any manufacturing process. They are especially useful in applications that require venting, top venting, or dual opening.

Types of Barrels

* Feeding barrel

* Solid barrel
* Closed barrel

* Barrels with inner liners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting

Standard Barrel Parameter Table

Production Process

	NO.1   Workblank     Select high-quality raw materials
NO.2   Piecewise According to the drawing section length
	NO.3   Hit bottom hole Rough machining the bottom hole,and then pull spline
NO.4   Machining thread Professional high-end processing equipment,rough machining threads
	NO.5   Finish machining thread
NO.6   Threading grinding Further control of tolerance Length:-0.01mm-+0.01mm OD:-0.03mm-0mm Transition arc:-0.02mm-+0.02mm

Service Network Assurance Barrel

Product accuracy

There are some differences between Nanxiang Machinery and Nanjing's production technology. Their finishing process is carried out before heat treatment, and the deformation after heat treatment is not controlled, so their accuracy is not easy to control. But our finishing process is carried out after heat treatment, which can eliminate the deformation of parts in heat treatment, so the precision is higher, and thus can achieve zero seam connection.

Packing&Delivery

Packing Details: According to your order quantity packaging, shipping wooden boxes, air carton.

Delivery Details: 20-60days after order.

Packing

According to your order quantities and products sizes to choose wooden boxes or cartons to pack:

a. Rust-proof oil processing,

b. Oiled paper packages,

c. Bubble wrap package,

d. Special foam packaging,

e. Packing,

f. Sealing.

Customer Trust

Certificate

Why choose us?

Nanxiang Machinery is a specialized manufacturer of precision-machined components for twin-screw extruders, including threaded elements, kneading blocks, mandrels, super-hard screw accessories, and wear-resistant alloy steel sleeves. Our products are widely applied in renowned international brands such as Coperion, Lerstritz, Berstorff, KOBE, and JSW, serving industries like plastics, food, feed, pellet manufacturing, pharmaceuticals, and new energy.

FAQ

Q: Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu, Sichuan Province, China. You can fly directly to Chengdu Airport, and we will pick you up upon arrival. We warmly welcome all our clients, both domestic and international, to visit us.

Q: How long will your product last?

A: The lifespan of our products can vary greatly depending on the operation time, materials used, and working conditions. Therefore, it is difficult to provide an exact duration.

Q: Are your quotations all FOB?

A: Yes, all our quotations are FOB (Free on Board).

Q: Can I get a one-year warranty for free?

A: Our standard warranty is not free, but we have confidence in the quality of our products. If you require a warranty, it will be available for an additional cost.

Q: How is your after-sale service?

A: We are committed to providing timely support. If you encounter any issues with our products, you will receive our assistance promptly. We strive to ensure you receive the best service possible.
