HRC 38 Extrusion Custom Splined Shafts High Torque Involute Spline For Food Factory

Name: HRC 38 Extrusion Custom Splined Shafts High Torque Involute Spline For Food Factory
Brand: Chengdu Nanxiang Qiaolin Machinery Co., Ltd.
SKU: As Requested
Availability: InStock

Brand Name:	Nanxiang Machinery
Model Number:	As Requested
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	30~60 days
Payment Terms:	TT/LC

Detail Information

Product Description

Detail Information

Place of Origin:

Sichuan China

Certification:

ISO 9001

Product Name:

Involute Spline Shaft

Material Hardness:

HRC 38-42

Wear Resistance:

High

Heat Treatment:

Vaccum Quenching

Length:

500-15000mm

Type Of Extrusion:

Double

Advantage:

High Precision OEM

Type:

Involute Inner Spline

Packaging Details:

Wooden Package

Supply Ability:

300M/Month

Highlight:

HRC 38 custom splined shafts

custom splined shafts High Torque

Involute Spline For Food Factory

Product Description

High Torque Twin Screw Extrusion Shaft Traditional Involute Spline For Food Factory

The Involute Spine Shaft is more than just precise - it's also designed to last. Thanks to its vacuum quenching heat treatment, this product has superior wear resistance, ensuring a long lifespan even under heavy use. And with its low-noise design, you can trust that it won't disrupt your workplace. Whether you're in need of a new spline shaft or looking to upgrade your existing machinery, the Involute Spine Shaft is a smart choice. With its combination of high precision, durability, and low noise, it's the perfect solution for a variety of industrial applications.

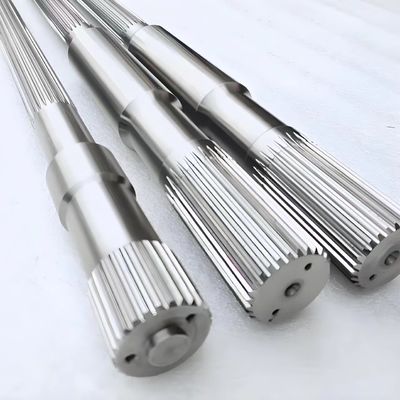

HRC 38 Extrusion Custom Splined Shafts High Torque Involute Spline For Food Factory 0

Specification

Product name	Involute spline shaft	Brand Name	Nanxiang
Wear	High Wear-resistant	Supplier	Factory Direct
Spline type	involute inner spline	Place of Original	Sichuan, China
Type of Extrusion	Double	Type	Involute Spline Shaft
Length	500-15000mm	Service	24 Hours Support

Our standard shaft

As the twin screw extruder moves toward high speed and high torque, higher requirements are placed on the strength (especially thermal strength) and accuracy of the twin screw extruder shaft, Through extensive research and painstaking research, our company adopts impots impoted pre-hard alloy tool steel from Germany. The spline processing adopts cold rolling processing of imported CNC equipment form Europe. The products have been tested by customers and fully meet the performance quality requirements of similar imported high end products.

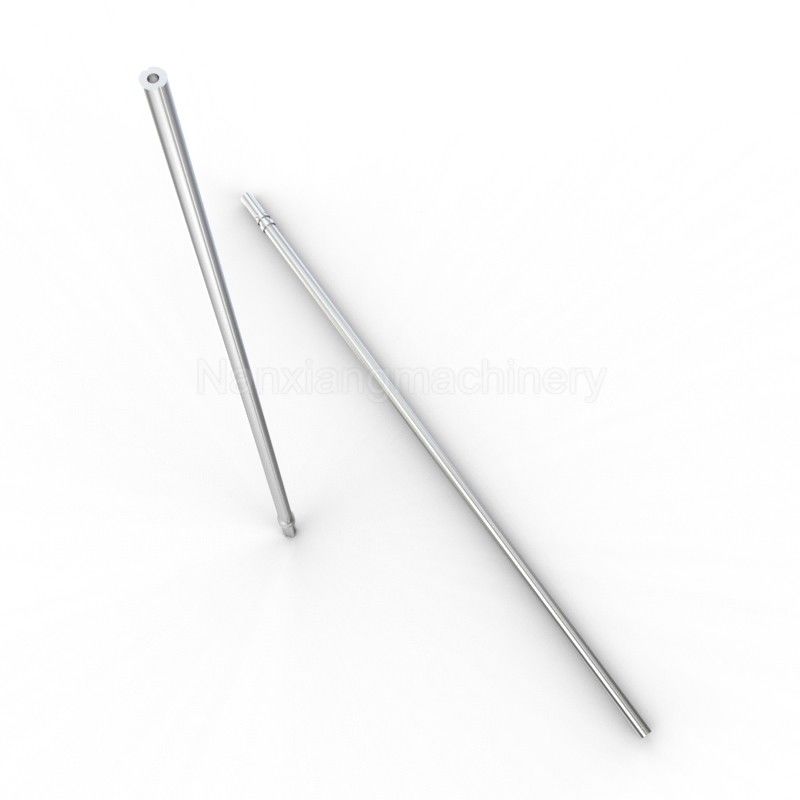

HRC 38 Extrusion Custom Splined Shafts High Torque Involute Spline For Food Factory 1

Types of shaft

Single keyway	Square keyslot
High torque key button	Dual keyslot
Involute inner spline	Round keyslot
Retackle spline	Client requirements available

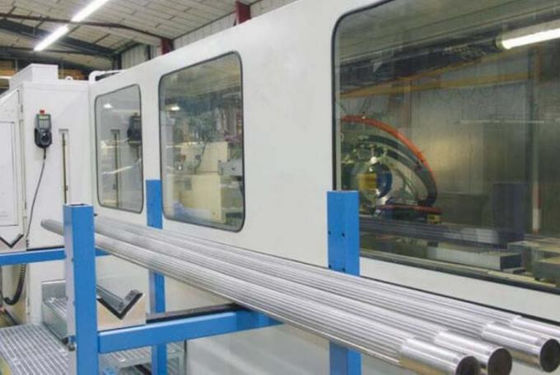

HRC 38 Extrusion Custom Splined Shafts High Torque Involute Spline For Food Factory 2

Material Option shaft

Material Name	Characteristics Suitable for Extruder Mandrel
40CrNiMo	High strength and toughness, good hardenability, excellent comprehensive performance
38CrMoAl	High hardness and wear resistance after nitriding, good corrosion resistance, high fatigue strength
WR15E	Good wear resistance and toughness, uniform structure with stable performance, certain corrosion resistance
WR30	Ultra-high wear resistance, toughness and corrosion resistance, high processing accuracy, high strength
45# Steel	Low cost, good processability, can meet general requirements after treatment
SUS440	High hardness and wear resistance, good corrosion resistance, can withstand certain high temperatures
SUS630	Precipitation hardening steel, high strength and hardness, good weldability, excellent corrosion resistance
9Cr18MoV	High carbon chromium alloy, high hardness and wear resistance, strong corrosion resistance, good mechanical properties

HRC 38 Extrusion Custom Splined Shafts High Torque Involute Spline For Food Factory 3

Support twin-screw extruder brand

W&P: ZSK-MC	Berstorff: ZE
Leistritz: ZSE-MICRO	Theysohn: TSK
Maris:TM-W	APV: MP65
JSW: TEX	SM: TEK-HS
Feddem: FED-MTS	Fessia Macross: NRII
TOSHIBA: TEM	USEON: TDS
Labtech: LTE	SHIZHOU: MTE

FAQ

Q: How long does it take to get my products since I paid for them?

A: According to yout order quantity,we will give you a reasonable delivery date.

Q: What machine does the product apply to?

A: Twin Screw Extruder Machine.
