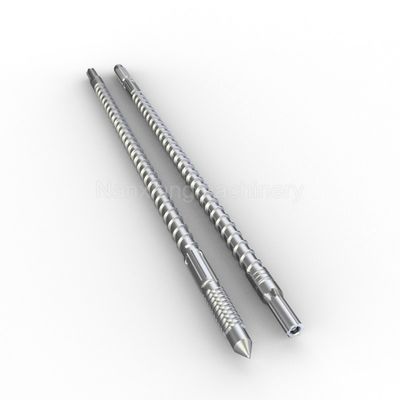

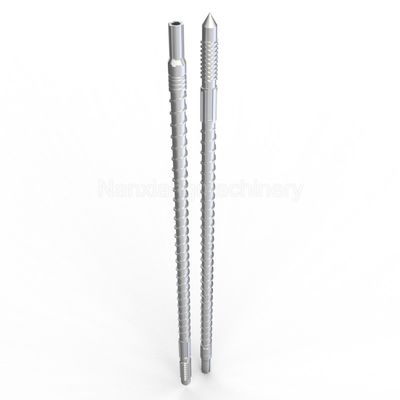

Durable High Torque Traditional Twin Screw Extruder Shaft Involute Spline Extruder Compounding

The Involute Spine Shaft comes in lengths ranging from 500mm to 15000mm, making it suitable for a wide range of applications. Made from high-quality German-sourced materials, this spline shaft has a material hardness of HRC 38-42, ensuring maximum durability and strength. One of the key advantages of the Involute Spine Shaft is its high precision OEM capabilities, making it an ideal choice for industries that require high-precision equipment. With its precision-machined design, this spline shaft can deliver precise and accurate results time and time again. Invest in the Involute Spine Shaft for a reliable and long-lasting spline shaft that can handle even the most demanding applications. Contact us today to learn more about this high-precision spline shaft and how it can benefit your business.

Specification

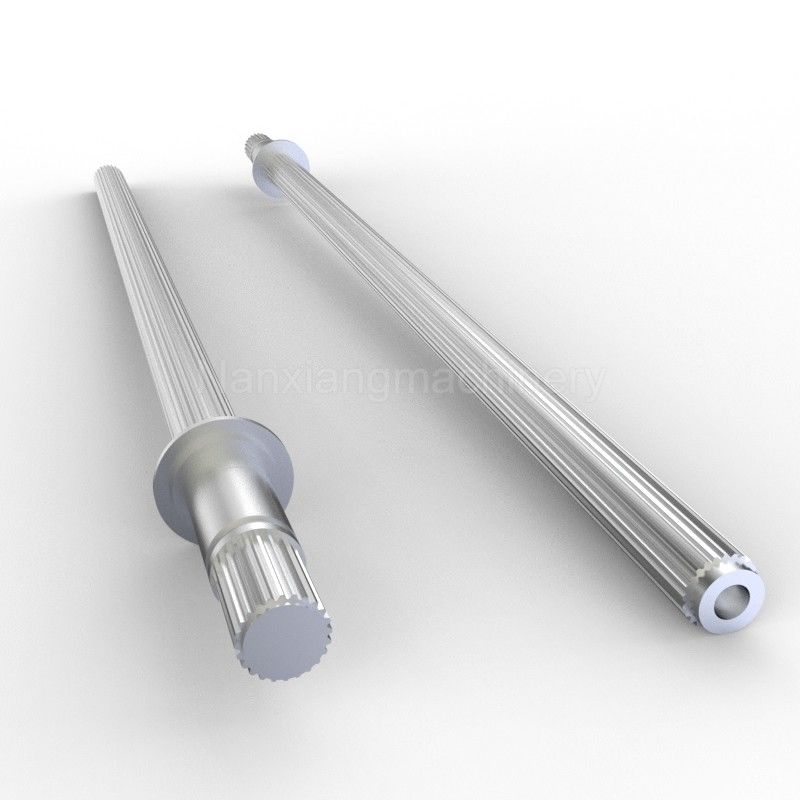

Our standard shaft

As the twin screw extruder moves toward high speed and high torque, higher requirements are placed on the strength (especially thermal strength) and accuracy of the twin screw extruder shaft, Through extensive research and painstaking research, our company adopts impots impoted pre-hard alloy tool steel from Germany. The spline processing adopts cold rolling processing of imported CNC equipment form Europe. The products have been tested by customers and fully meet the performance quality requirements of similar imported high end products.

Types of shaft

Material Option shaft

Extruder Screw Materials

1. For wear application:

Tool Steel : W6Mo5Cr4V2;

PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V

2. For corrosion application:

Nitrided Steel: 38CrMoAI;

PM-HIP material : SAM26 SAM39 CPM10V CPM9V

3. For wear and corrosion application:

PM-HIP material:SAM26 SAM39 CPM10V CPM9V

4. Other Materials:

Stainless Steel: 316L, C276, SX737 etc.

Support twin-screw extruder brand

Quality Control

1). Materials control: All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.

2). The internal splines is checked by the spline plug to ensure interchangeability of the elements

3). All components are machined by CNC machines to ensure the shapes and tolerances of the elements

4). Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.

5). Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.

6). There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.

7). The modern management system can ensure the products 100% qualified and tracked.
